Plasma cleaning machine model:
• PT-2S type is a two-way gas input, stainless steel cabin: Φ100mm × 270mm
• Capacity: 2 liters
• Power supply: AC220V
• Working current: the machine working current is not greater than 1.2A (without vacuum pump)
• RF power: 0-150W / 0-300W (choose a section before leaving the factory)
• RF frequency: 40KHz or 13.56MHz optional (offset less than 0.2KHz)
• Frequency offset: less than 0.2KHz
• Characteristic impedance: 50 ohms, automatic matching
• Vacuum degree: 10Pa-1000Pa
• Gas flow: 60-600ml / min (adjustable)
• Process control: MCU automatic and manual mode
• Cleaning time: 1-100 minutes adjustable
• Power size 10% -100% adjustable
• Dimensions: PT-2S type _400x450x250
• Weight: 36.5Kg
• Vacuum pump: 2XZ-4
• Vacuum chamber temperature: less than 65 ° C
• Cooling method: forced air cooling

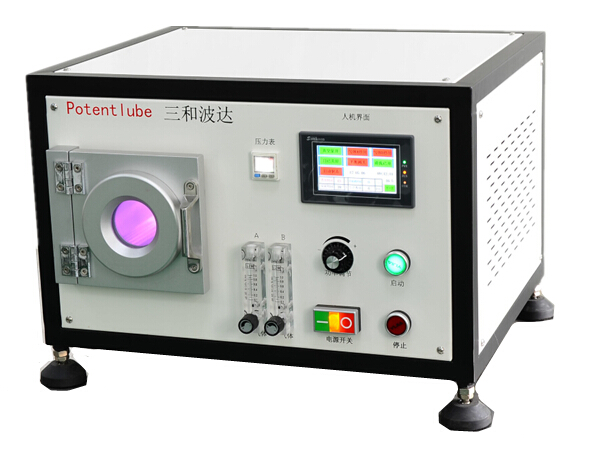

PT-2S vacuum plasma cleaning machine, which is the use of energy conversion technology, in a certain vacuum negative pressure state, the power to the gas into a very high activity of gas plasma, gas plasma can gently scour the surface of solid samples, causing molecular structure Of the change, so as to achieve the surface of the sample of organic pollutants over the cleaning, in a very short period of time the organic pollutants were completely vacuum pump away, the cleaning capacity can reach the molecular level. Under certain conditions can also make the sample surface characteristics change. Because of the use of gas as the cleaning medium, so can effectively avoid the sample again pollution. Plasma cleaning machine can not only enhance the adhesion of the sample, compatibility and wetting, but also on the sample disinfection and sterilization. Plasma cleaning machine is now widely used in optical, optoelectronics, electronics, materials science, polymer, biomedical, micro fluid fluid and other fields.
Domestic plasma cleaning machine is in the foreign plasma cleaning machine expensive, difficult to promote and other shortcomings on the basis of the existing domestic and foreign plasma cleaning machine to learn the advantages of domestic users with the use of demand, the use of advanced technology to develop a new series of plasma washing machine. In addition to the advantages of other plasma cleaning device, the product has the advantages of stable performance, high cost performance, high cleaning efficiency, easy operation, low cost and easy maintenance. Products can adapt to different users of the special equipment requirements. Cleaning cabin materials are available for heat-resistant glass and stainless steel, stainless steel cleaning cabin with round and square options.
Features:
Ultra-cleaning of organic contaminants such as paraffin, oil, release agent, protein, etc. on metal, glass, silicon, ceramic, plastic, and polymer surfaces.
Change the performance of some material surfaces.
So that glass, plastic, ceramics and other materials surface activation, to strengthen the adhesion of these materials, compatibility and wetting.
Remove the oxide layer on the surface of the metal material.
Disinfect and disinfect the contents.
Advantage
With stable performance, cost-effective, easy to operate, the use of low cost, easy to maintain the characteristics.
For a variety of geometric shapes, surface roughness of different metals, ceramics, glass, silicon, plastic and other objects surface cleaning and modification.
Completely and completely remove the organic contaminants on the surface of the sample.
Timing processing, quick handling, high cleaning efficiency.
Green, do not use chemical solvents, the sample and the environment without secondary pollution.
Ultra-clean under normal temperature conditions, non-destructive treatment of the sample.
Application areas:
Optical devices, electronic components, semiconductor components, laser devices, coated substrates, terminal mounting, and the like.
Cleaning optical lenses, electron microscopy lenses and other lenses and slides.
Removing the photoresist on the surface of the optical element, the semiconductor element, etc., and removing the oxide on the surface of the metal material.
Cleaning semiconductor components, printed circuit boards, ATR components, intraocular lenses, natural crystals and precious stones.
Cleaning a biochip, a microfluidic chip, and a substrate for depositing a gel.
Modification of Polymeric Materials.
Packaging in the field of cleaning and modification, enhance its adhesion, suitable for direct packaging and sticky.
Improve the adhesion of optical components, optical fiber, biomedical materials, aerospace materials used glue glue force.
In the field of coating coating, the surface of glass, plastic, ceramics, high polymer and other materials to modify, to activate, enhance the surface adhesion, wetting, compatibility, significantly improve the coating coating quality.
The pretreatment of titanium tooth grafts and silicone die materials in the dental field enhances its wetting and compatibility.
Medical field repair in the graft and biomaterial surface pretreatment, enhance its wetting, adhesion and compatibility. Disinfection and sterilization of medical devices.
